Comprehensive Guide to Key Components of Rubber Molding Machines: Precision Parts that Support Productivity and Quality
Rubber molding machines are essential for producing high-precision rubber products. The performance of these machines is not only determined by the machine itself but by the precision of each individual component within it. In this article, we will provide a detailed explanation of the key components used in rubber molding machines. By understanding the role, structure, and importance of each part, you can achieve more efficient and higher-quality rubber molding.
1. Valves: The Core of Fluid Control
In rubber molding machines, valves control the flow of fluids such as hydraulic oil or air, adjusting the pressure and flow within the system. This allows hydraulic cylinders and pneumatic systems to operate precisely, ensuring a smooth molding process.
Hydraulic Valves: Control the movement of hydraulic cylinders, adjusting pressure and speed. They are crucial for pressure regulation and mold opening and closing.
Pneumatic Valves: Control the actions of pneumatic systems, such as mold opening and rubber injection.
Valves come in various types, each serving different functions, and they directly affect the precision of the machine. Proper selection and maintenance are essential.
2. Relays: The Switches for Electrical Circuit Control
Relays are used to control electrical circuits. When a relay operates, it sends electrical signals that activate various components of the rubber molding machine. The accuracy and operation of the relay are vital for the smooth operation of the machine.
Electromagnetic Relays: Use low current signals to switch the internal contacts, allowing high current to flow.
Timer Relays: Switch the circuit after a set time, often used for temperature regulation and cooling time control.
Relay failure can affect the overall operation of the machine, so regular checks are necessary.
3. Hydraulic Hoses: The Lifeline of the Hydraulic System
Hydraulic hoses are responsible for transmitting hydraulic oil, connecting hydraulic cylinders, valves, pumps, and other components within the system. They efficiently transport high-pressure oil, making them a critical part of ensuring the proper functioning of the rubber molding machine.
High-Pressure Hydraulic Hoses: Made with reinforced materials to withstand high pressures.
Heat-Resistant and Cold-Resistant Hoses: Designed to maintain stable oil flow under extreme temperatures.
Damage to hydraulic hoses can destabilize the entire system and even cause production line stoppages, so they must be regularly checked.
4. Vacuum Pumps: The Secret to Improving Molding Precision
Vacuum pumps create a vacuum within the mold to promote the even flow of rubber, preventing bubbles and defects. This function is particularly important when producing precision products.
Roots Pumps: Powerful vacuum pumps commonly used in large-scale molding machines or continuous production.
If the vacuum pump’s performance is inadequate, it can result in air bubbles or uneven surfaces in rubber products.
5. Oil Coolers: Temperature Control for the Hydraulic System
If the hydraulic oil used in the system becomes too hot, it can lead to a decrease in machine performance. Oil coolers efficiently cool the hydraulic oil, maintaining it within an optimal temperature range. This is essential for rubber molding machines.
Air-Cooled Oil Coolers: Use fans to cool the oil with air, offering a simple design at a low cost but with limited cooling capacity.

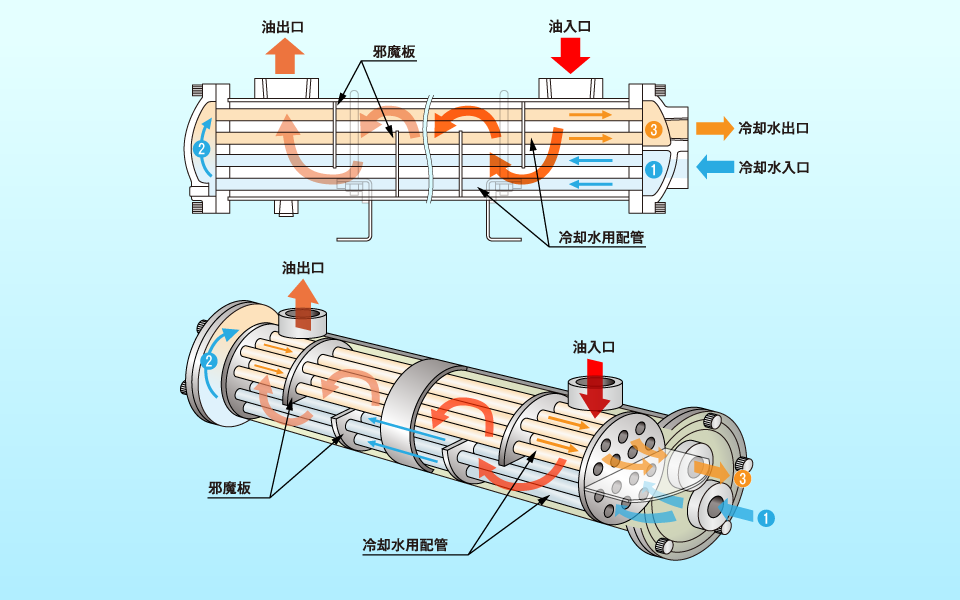

Water-Cooled Oil Coolers: Use cooling water to efficiently cool hydraulic oil, typically used in larger rubber molding machines or high-load systems.
Failure of the oil cooler can lead to overheating of hydraulic oil, reducing system efficiency and product quality.
6. Pressure Switches: Ensuring System Safety
Pressure switches monitor the pressure within the hydraulic system and issue warnings or automatically shut down the system if the pressure exceeds a set limit. This safety feature prevents the machine from operating under overload conditions and helps avoid damage.
Structure: The pressure switch contains a pressure-sensing sensor. If the pressure exceeds the set point, the switch activates and sends a warning or stop signal.
If the pressure switch is not functioning properly, excessive pressure could damage the rubber molding machine or cause production instability. Ensuring the pressure switch operates correctly is vital.
7. PLC (Programmable Logic Controller): The Central Control Unit
The PLC is the core control unit of a rubber molding machine. It manages the various components of the machine, adjusting their actions. It monitors parameters such as temperature, pressure, and time in real-time, optimizing machine operation.
Function: The PLC receives data from sensors and automatically adjusts machine actions to achieve precise rubber molding. Users can easily adjust settings through touch panels or PCs.
Advantages: PLCs make it easy to update programs, optimize production processes, and facilitate quick troubleshooting.
The PLC is the “brain” of the molding machine. If it malfunctions, it can affect the stability of the entire production line, so regular maintenance and program updates are essential.
8. Motors: The Driving Force Behind the Machine
Motors are the power sources for rubber molding machines. They drive hydraulic cylinders, valves, pumps, and other components, initiating the molding process. Choosing the appropriate motor directly affects the machine’s performance.
Types: Rubber molding machines typically use three-phase motors or servo motors. Servo motors, in particular, offer precise control for high-precision molding.
Role: Motors adjust the speed and torque of the molding machine, affecting molding accuracy and efficiency.
Motor maintenance and replacement need to be carefully managed, as motor issues can cause delays or instability in machine operation.
9. Safety Equipment: Ensuring Machine Safety
Rubber molding machines are equipped with various safety devices to ensure the safety of operators. These devices respond quickly in case of machine malfunction or anomalies, preventing accidents.
Emergency Stop Buttons: These buttons immediately stop all operations when an anomaly or danger is detected. They are usually placed in prominent locations on the machine for easy access by operators.
Safety Guards and Covers: Protect movable parts and high-temperature areas of the molding machine, preventing operators from coming into contact with them. These protective devices significantly reduce the risk of accidents.
Regular inspection of safety equipment is crucial to ensure it functions properly in case of an emergency, ensuring the safety of personnel.
Conclusion
The various components of a rubber molding machine work together to support the high-precision molding of rubber products. From valves and relays to hydraulic hoses and vacuum pumps, each part plays a vital role in ensuring a smooth molding process. In addition, control systems such as PLCs and motors, along with safety devices like emergency stop buttons, work together to optimize machine efficiency and safety. Regular maintenance and inspection of these components can extend the life of rubber molding machines and ensure stable, high-efficiency production.
